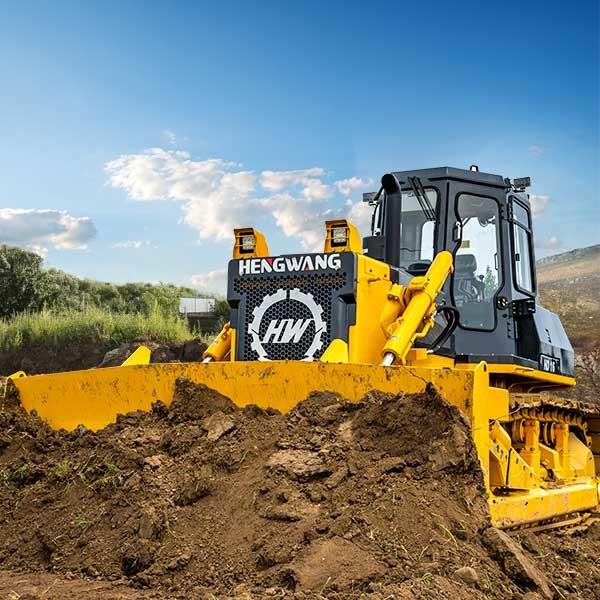

HW16D Logging Dozer Efficient Workflow And Robust Ripper Capability
| Place of Origin | China |
|---|---|
| Brand Name | HW |
| Model Number | 16D |
| Minimum Order Quantity | 1 |
| Price | USD5000-8000/set |
| Packaging Details | Wooden box, container, etc |
| Delivery Time | 5-8 workdays |
| Payment Terms | L/C, D/A, D/P |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Weight | 17000KG | Minimum Turning Radius | 4466mm |
|---|---|---|---|
| Ground Length | 2430mm | Ground Voltage | 0.067kpa |
| Engine | WD10G178E25 | Engine Power | 131KW |
| Dimensions | 5140*3388*3032 (mm) | Forward Speed | 0~9.63 (km/h) |
| Reverse Speed | 0~12.53(km/h) | Ground Clearance | 400mm |
| Track Center Distance | 1880mm | Track Shoe Width | 510/560mm |
| Chain Rail Pitch | 203.2mm | ||
| High Light | Efficient Workflow Bulldozer,Robust Ripper Capability Bulldozer,HW16D Logging Dozer |
||
Product Description
HW16D Bulldozer - Defining Excellence in Construction
Unlock unparalleled performance with the HW16D Bulldozer. Crafted for the toughest challenges, this machine is your gateway to efficiency, adaptability, and success in every construction project.
Key Advantages:
1. Unmatched Power and Stability:
-
Boasting a working weight of 17,000KG, the HW16D ensures stability while delivering powerful results.
-
The WD10G178E25 engine, with 131kw at 1850rpm, provides the raw power needed for demanding tasks.
2. Precision in Action:
-
Navigate confined spaces effortlessly with a minimum turning radius of 4466mm.
-
Ground clearance of 400mm ensures seamless operation across various terrains.
3. Versatile Blade Options:
-
Tailor your approach with three blade options:
-
Straight Tilt: Ideal for deep cuts with a 4.5m³ capacity.
-
Angle: Perfect for grading and leveling with a 4.3m³ capacity.
-
U Shape: Versatile for various tasks, offering adaptability on the field.
-
4. Adaptable to Varied Terrains:
-
From urban construction sites to expansive rural projects, the HW16D excels across diverse environments.
-
Tackle everything from precision grading to heavy-duty earthmoving with ease.
5. Efficient Workflow:
-
Forward speeds ranging from 0 to 9.63 km/h and reverse speeds from 0 to 12.53 km/h provide precise control.
-
Execute tasks with efficiency, ensuring a streamlined workflow for increased productivity.
6. Robust Ripper Capability:
-
The three-shank ripper, weighing 1709kg, is designed for heavy-duty ripping tasks.
-
With a maximum ripping depth of 572mm, it enhances the bulldozer's versatility.
Technical Specifications:
|
Parameter |
Value |
|---|---|
|
Model |
HW16D |
|
Working Weight |
17,000KG |
|
Minimum Turning Radius |
4466mm |
|
Ground Length |
2430mm |
|
Ground Voltage |
0.067kpa |
|
Engine Model |
WD10G178E25 |
|
Engine Power/Speed |
131kw/1850rpm |
|
Dimensions |
514033883032 |
|
Forward Speed |
0~9.63 (km/h) |
|
Reverse Speed |
0~12.53(km/h) |
|
Ground Clearance |
400mm |
|
Track Center Distance |
1880mm |
|
Track Shoe Width |
510/560mm |
|
Number of Track Shoes |
37(single side/piece) |
|
Chain Rail Pitch |
203.2mm |
|
Number of Idler |
2 (single side) |
|
Number of Track Roller |
6(single side) |
|
Mailbox Capacity |
320L |
|
Blade Form |
Straight Tilt / Angle / U |
|
Blade Capacity |
4.5/4.3/- (m³) |
|
Blade Weight |
2454/2289/2672 (kg) |
|
Blade Width |
3388/3970/3556mm |
|
Blade Height |
1149/1090/1120(mm) |
|
Max Lifting Height |
1095/1110/1095mm |
|
Max Cutting Depth |
400/-/400mm |
|
Ripper Form |
Three Shank |
|
Ripper Weight |
1709(kg) |
|
Max Ripping Depth |
572(mm) |
|
Max Lifting Height (Ripper) |
592(mm) |
Applications and Use Cases:
1. Urban Construction:
-
Navigate through tight urban spaces with ease, making the HW16D ideal for construction within city limits.
2. Rural Development:
-
Conquer expansive rural projects with the bulldozer's robust power and adaptability to varying terrains.
3. Road Construction:
-
Efficiently grade and level roads, ensuring precision in every pass for a smooth and durable finish.
4. Earthmoving Projects:
-
Handle heavy-duty earthmoving tasks with confidence, maximizing productivity on large-scale projects.
5. Quarry Operations:
-
Excel in quarry operations, where the HW16D's power and precision make it an asset for extracting and moving materials.
Why Choose HW16D Bulldozer:
-
Versatility in Action: Adapt to any project requirement with the diverse blade options.
-
Terrain Mastery: Conquer challenging terrains with the bulldozer's robust build and precise control.
-
Efficiency Redefined: Experience uninterrupted workflow and increased productivity on every project.
-
Reliability on Demand: Crafted with excellence, the HW16D Bulldozer ensures durability and minimizes downtime.
Transform your construction experience with the HW16D Bulldozer - your partner in conquering challenges and achieving success.
